Tool Introduction

The pressure gauge holder is a carrier used to mount pressure gauges. Depending on the sensed pressure, it can be divided into two types: sensing the pressure inside the column (measuring internal pressure) and sensing the pressure in the annulus (measuring external pressure). Depending on the mounting method, it can be divided into two forms: built-in and external pressure gauges. The specifications and dimensions of the cylinder are related to the size and quantity of the mounting, and can be made into structures with concentric inner and outer diameters, eccentric inner and outer diameters, eccentric outer diameters, or eccentric inner and outer diameters at the same time. They are usually designed according to specific pressure gauges.

Structural characteristics

① Simple structure and easy operation;

② You can choose according to the required well conditions;

③ There are shock-absorbing devices installed in the support cylinder, commonly in two forms: spring shock absorption and rubber shock absorption

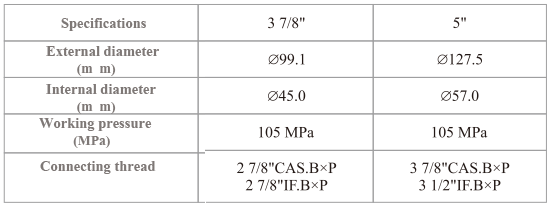

technical parameter
